116E98
Surface Treatment:PH
Materials:Aluminum/Zinc Alloy
Applied to:Gate Door, Entrance Door, Main Door
Advantage: Korea Touch Screen Technology
Specifications
1.Modern fashion design plus stainless steel material.

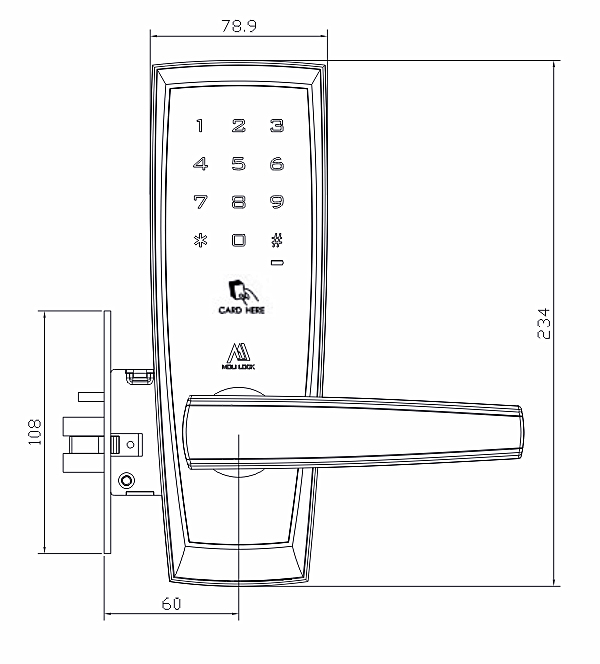

2.23.5cm standard hole distance anti-theft lock body.
3. Optional unlocking modes.
4. High safety and stability (Double-drive structure + Double circuit boards + Double battery boxes)
5.Changeable function between passage lock and household lock.
6.Korea touch screen technology chip.
7.9V batteries backup power interface.
8.One-card available.
9.Low voltage warning function.
Technical Parameters
Basic supply: 800 card numbers + 200 codes + 1management code + 1management card.
Battery life: normally opening door for 50,000 times.
Quiescent current: <50?A.
Available cards: Mifare-1 card S50.
Low voltage warning function.
Power supply: 4pcs AA alkaline batteries.
Lifetime: normally opening door for over 300,000 times.
